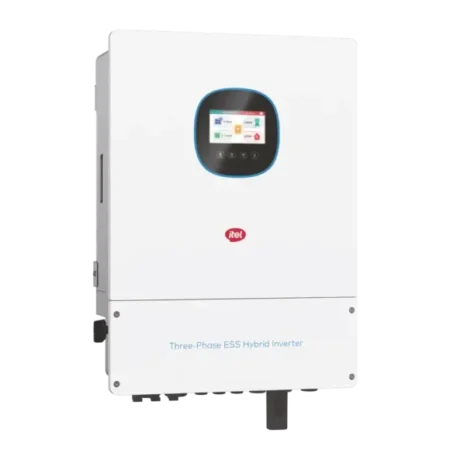

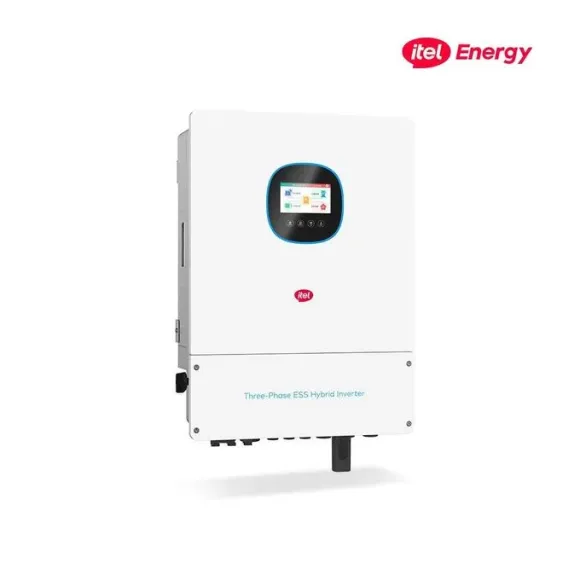

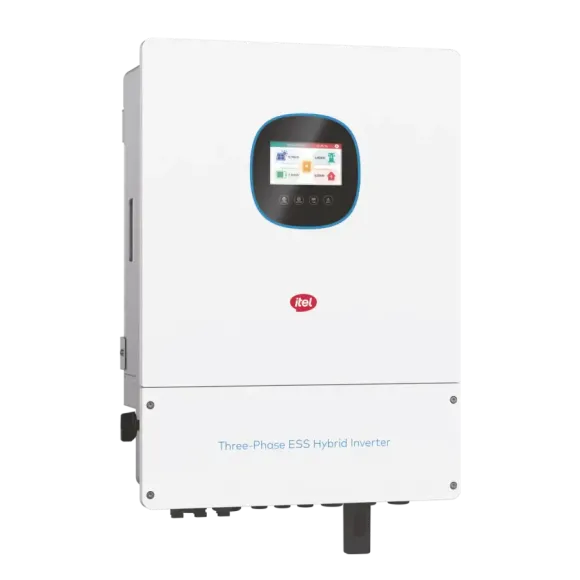

itel 8kW 48V 3-Phase Hybrid Solar Inverter IHY-8KL3

itel 8kW 48V 3-Phase Hybrid Solar Inverter IHY-8KL3

itel 8kW 48V 3-Phase Hybrid Solar Inverter IHY-8KL3 Power whole commercial buildings, industrial machinery, agricultural facilities, or large estates. Built for 380V/400V balanced three-phase systems, it features a massive 16kW (16,000W) Dual MPPT Solar Input (1000V Max VOC), 150% unbalanced load capacity per phase, Built-in Wi-Fi monitoring, and 10ms UPS switchover speed. Encased in a military-grade IP66 waterproof and dust proof chassis, it supports parallel expansion up to 12 units.

Engineered with Dual Independent MPPT Trackers supporting up to 16,000 Watts of solar panels, this unit accepts high-voltage panel strings up to 1000V DC reducing wiring losses and installation labor. Run heavy 3-phase machinery, commercial air conditioning networks, and cold storage units directly off solar energy during daylight hours while keeping your 48V battery storage charged.

Key Features and Benefits

• 8kW rated output: Provides up to 8,000W of rated AC output under the manufacturer’s specified conditions.
• Three-phase power: Designed for compatible 380V/400V three-phase electrical installations.
• 48V battery system: Supports compatible 48V lead-acid or lithium-ion battery systems.
• Up to 16kW solar PV input: Supports a high-capacity solar array within the inverter’s electrical limits.
• Dual MPPT trackers: Two solar tracking inputs for compatible panel-string configurations.
• IP66 protection: Dust-tight enclosure with protection against powerful water jets under specified test conditions.
• Dual-output and smart-load functionality: Supports different load groups, depending on the installation configuration.
• Wi-Fi monitoring: Supports compatible remote monitoring; confirm the included accessories and setup requirements.
• High surge capability: Manufacturer documentation lists peak backup output of 16kVA for up to 15 seconds.
• Grid and generator support: Supports compatible AC sources according to the manufacturer’s requirements.
• System expansion: Manufacturer documentation lists parallel operation support; confirm the permitted configuration before installation.

Appliance Capacity Guide (Typical 3-Phase Load)

The itel 8kW (8000W) 3-Phase continuous capacity on a 48V battery setup easily powers commercial machinery and large facilities:

• 3-Phase Heavy Industrial Motors / Compressors / Cold Room Storage
• 3x to 4x 1.5HP / 2HP Inverter Air Conditioners (Spread across 3 phases)
• 1x 2HP or 3HP 3-Phase Automatic Water Pump / Borehole Pump
• Entire Commercial Office Floor: Desktop PCs, Servers, Printers & Network Racks
• Multiple Double-Door
