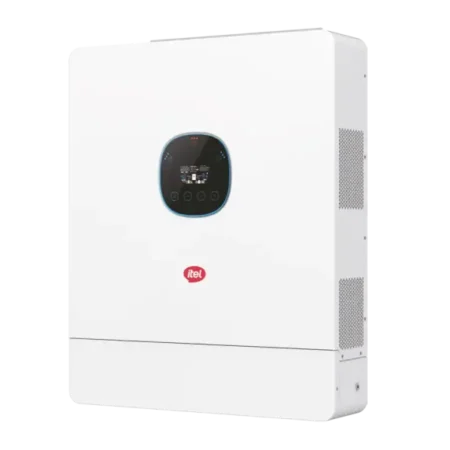

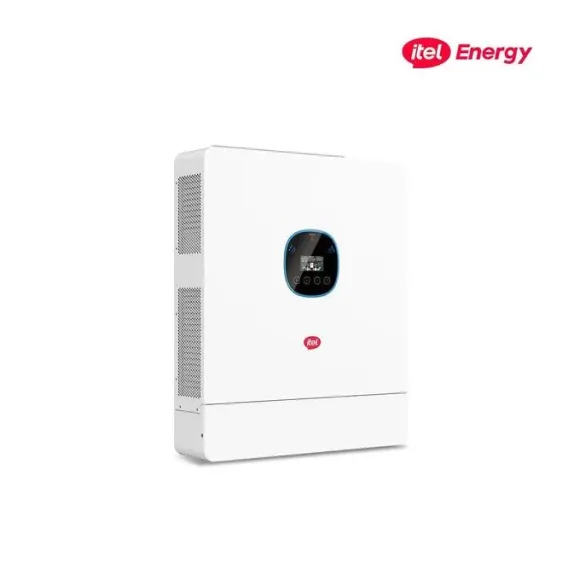

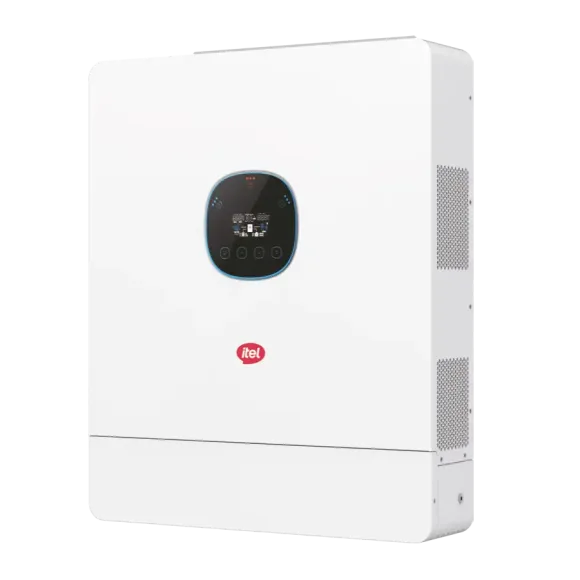

itel 12kW 48V Hybrid Solar Inverter IPV 12K48U

Itel Energy 12kW inverter shown on a blue night background with a bullet list of features pure sine wave inverter MPPT efficiency >999 90280VAC input range 200 overload at 2s IP54 protection 3 year replacement

itel 12kW 48V Hybrid Solar Inverter IPV-12K48U

₦1,177,000

12kW rated output:
48V battery compatibility
Up to 16kW solar PV input
Dual MPPT trackers
IP54 protection
Dual-output load management
Built-in Wi-Fi support
High surge capability

itel 12kW 48V Hybrid Solar Inverter IPV-12K48U

itel 12kW 48V Hybrid Solar Inverter IPV-12K48U power entire residential complexes, estates, commercial offices, or industrial sites. Engineered for extreme energy capacity, it features a massive 16kW (16,000W) Dual MPPT Solar Controller (2 Independent Trackers), Smart Dual AC Output management, 24,000VA surge capacity, and Built-in Wi-Fi app monitoring. Housed in a heavy-duty IP54 weatherproof casing, it supports parallel connection up to 16 units for massive power scaling.

Featuring Dual MPPT Solar Controllers supporting up to 16,000 Watts of PV input, this unit allows you to connect two large, independent solar panel arrays facing different directions (e.g., East and West roof slopes) to capture maximum sun harvest throughout the entire day. Run demanding commercial loads, multiple air conditioners, and heavy pumping machinery directly off solar power during daylight hours while efficiently charging your 48V battery bank.

Key Features

12kW rated output: Provides up to 12,000W of rated AC output under the manufacturer’s specified operating conditions.
48V battery compatibility: Designed for a compatible 48V battery system.
Up to 16kW solar PV input: Supports a suitably designed solar panel array within the inverter’s electrical limits.
Dual MPPT trackers: Two independent solar tracking inputs for compatible PV configurations.
IP54 protection: Enclosure protection against dust ingress and water splashes, subject to the manufacturer’s specifications.
Dual-output load management: Supports main-load and smart-load functionality.
Built-in Wi-Fi support: Enables compatible monitoring when properly configured.
High surge capability: Manufacturer datasheet lists 24kVA surge output for up to five seconds.
Battery charging support: Supports compatible lead-acid and lithium-ion batteries, subject to the manufacturer’s voltage and charging requirements.
Grid and generator support: Designed to work with compatible AC input sources according to the installation requirements.
