itel 51.2V 314Ah LiFePO4 Lithium Battery IPL-51314H

itel 51.2V 314Ah LiFePO4 Lithium Battery IPL-51314H

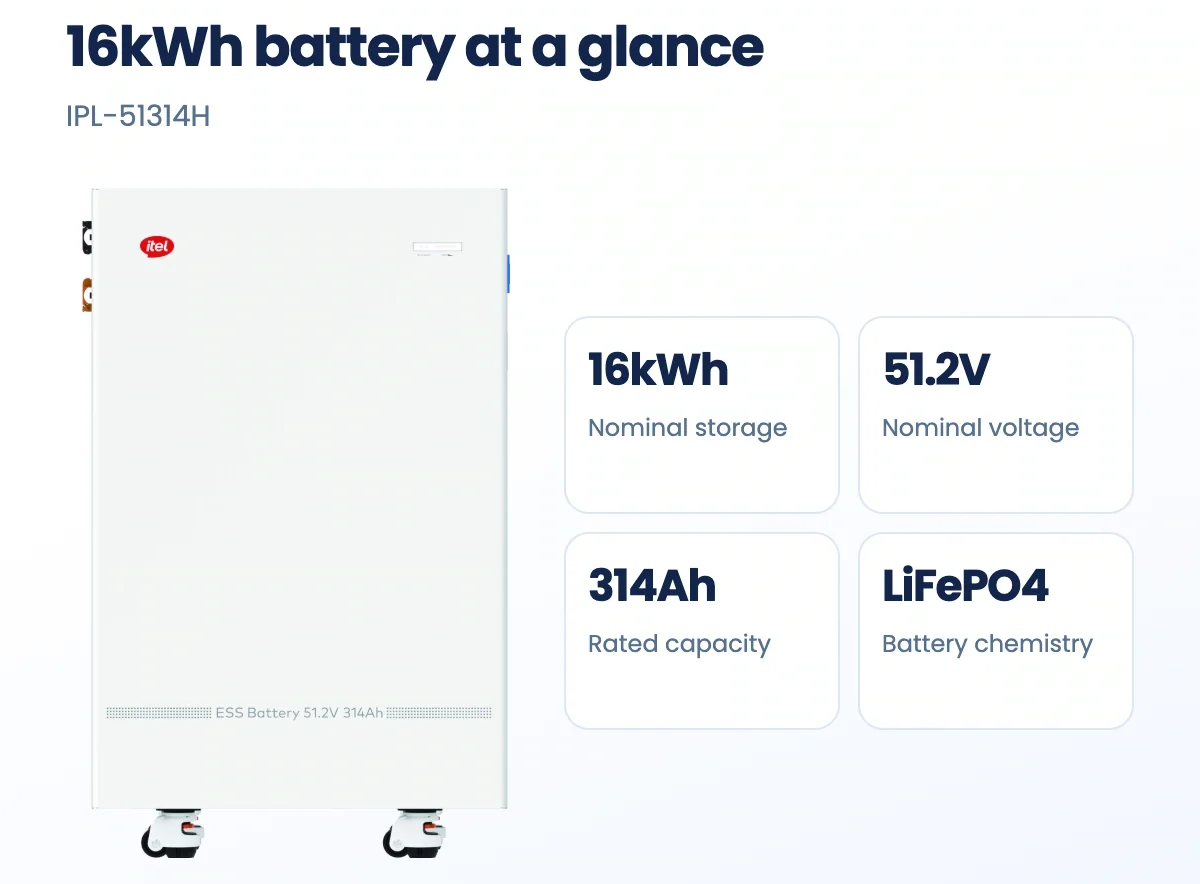

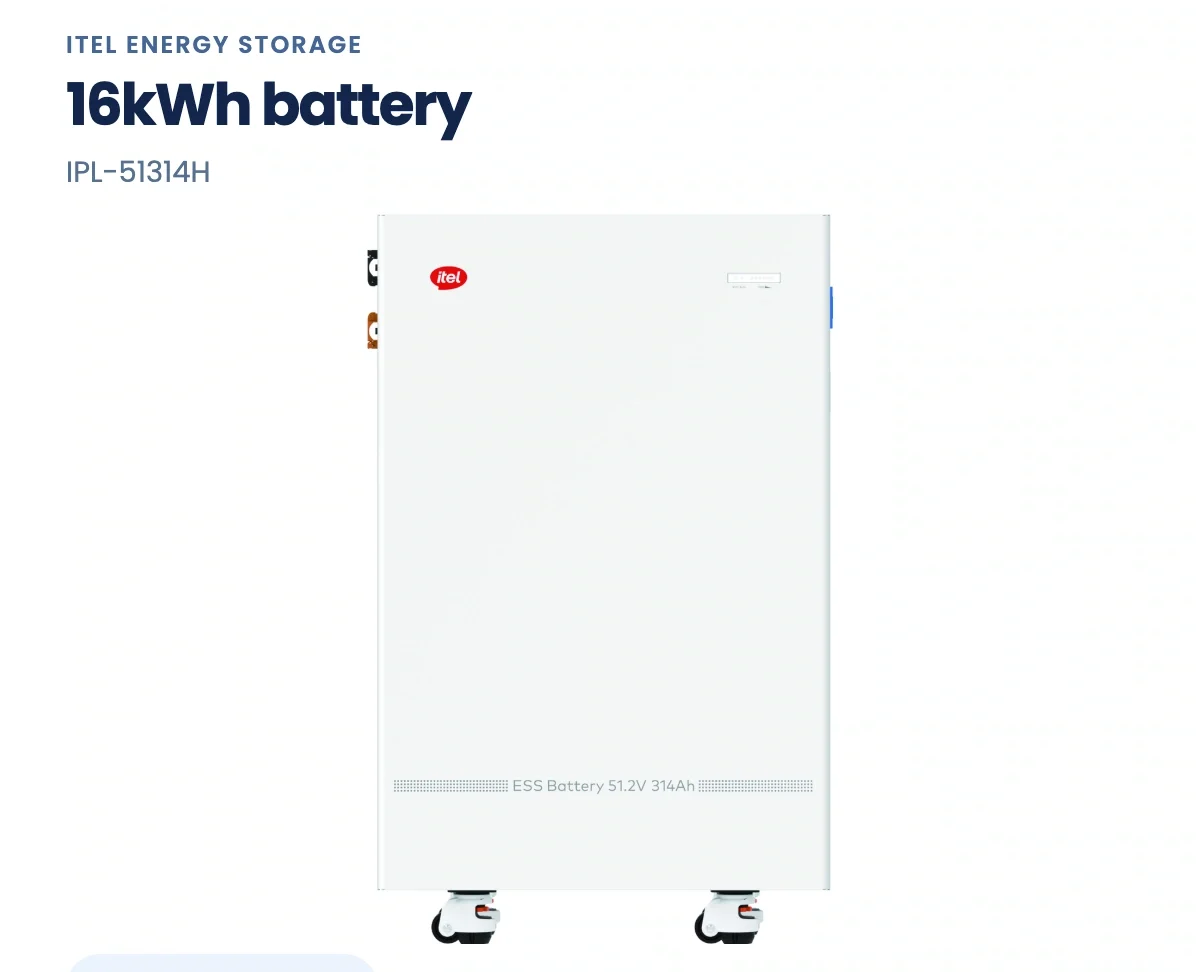

itel 51.2V 314Ah LiFePO4 Lithium Battery IPL-51314H a high-capacity energy storage solution for homes, offices, hotels and commercial facilities that need an extended backup reserve.

This battery combines a nominal voltage of 51.2V with a rated capacity of 314Ah, delivering approximately 16.07kWh of stored energy. It uses Lithium Iron Phosphate (LiFePO₄) chemistry and incorporates an intelligent battery management system (BMS) to help monitor operating conditions and protect against electrical and temperature-related faults.

For users running several appliances, refrigeration equipment, office electronics or other compatible loads, the IPL-51314H provides a larger storage option than conventional 5kWh and 10kWh battery units. CAN and RS485 communication interfaces enable integration with compatible inverters, while supported parallel configurations allow storage capacity to be expanded when the installation is designed for it.

Key Features and Benefits

• 16.07kWh nominal energy: Stores more electricity than smaller residential lithium batteries, helping extend backup duration.
• 314Ah battery capacity: Provides a substantial energy reserve for higher-consumption installations.
• 51.2V battery platform: Intended for compatible 48V-class inverter systems.
• LiFePO₄ chemistry: Uses Lithium Iron Phosphate cells for rechargeable energy storage.
• 6,000+ cycle rating: Published specifications list more than 6,000 cycles under defined test conditions.
• Intelligent BMS: Provides monitoring and protective functions for voltage, current, temperature and short-circuit conditions.
• CAN and RS485 interfaces: Supports communication with compatible inverters and monitoring equipment.
• Expandable battery storage: Parallel operation can increase total storage capacity when installed according to manufacturer requirements.
• Natural cooling: Uses passive cooling without a dedicated cooling fan.
• LED status display: Provides visual indications of battery charge and operating status.
• Standing metal enclosure: A floor-standing format for a suitable indoor battery area.

Typical Appliance Runtime Estimates (Single 16.07kWh Module)

A single IPL-51314H (16.07kWh) module handles severe residential, commercial, or office loads:

• 3x 1.5HP Inverter Air Conditioners (1800W avg load): ~7.5 to 8.5 Hours
• 3x Double-Door Refrigerators / Freezers (450W combined): ~30 to 32 Hours
• Large Home Theater + 65″ TV + Decoders (250W total): ~50+ Hours
• Entire Office: 12x Laptops + Servers + Wi-Fi (600W total): ~22 to 24 Hours
• 10x Standing / Ceiling Fans (400W total): ~32 to 35 Hours
• 40x Low-Wattage LED Bulbs (280W total): ~45+ Hours
