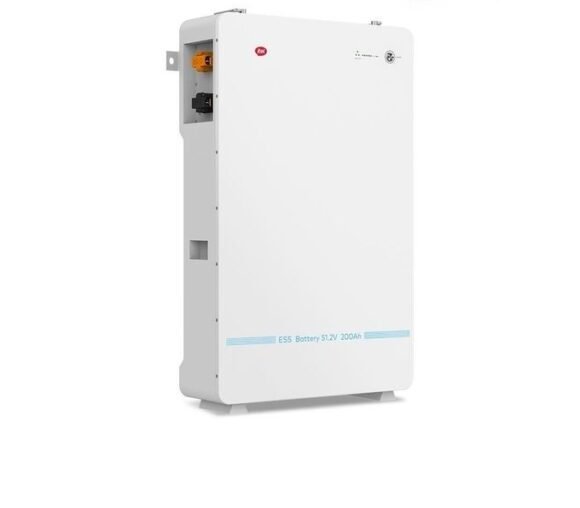

itel 51.2V 200Ah Wall-Mounted LiFePO4 Lithium Battery IPL-51200X

itel 51.2V 200Ah Wall-Mounted LiFePO4 Lithium Battery IPL-51200X

itel 51.2V 200Ah Wall-Mounted LiFePO4 Lithium Battery IPL-51200X a high-capacity energy storage solution built for solar installations and backup power systems. With a rated capacity of 200Ah and a nominal voltage of 51.2V, it stores substantial energy for use when solar generation is low or public electricity is unavailable.

Its Lithium Iron Phosphate (LiFePO₄) chemistry is designed for long service life, while a rated cycle life exceeding 6,000 cycles under specified test conditions makes it an option for users seeking long-term energy storage. The battery also provides communication interfaces for compatible inverter systems, allowing supported equipment to exchange battery status and operating information.

Whether you are upgrading a residential solar installation, improving power availability at an office, or planning a larger energy storage setup, the IPL-51200X offers a substantial storage capacity in a standing metal enclosure. Multiple compatible units can be connected in parallel, subject to the manufacturer’s installation limits and system requirements.

Key Features and Benefits

• 24kWh energy capacity: Stores a substantial amount of electricity for backup and solar energy use.
• 2V nominal voltage: Intended for compatible 48V-class inverter systems.
• 200Ah rated capacity: Provides a large energy reserve for appropriately sized installations.
• LiFePO₄ battery chemistry: Uses Lithium Iron Phosphate technology for rechargeable energy storage.
• More than 6,000 rated cycles: Published cycle-life figure under specified test conditions; actual service life varies with operating conditions.
• Expandable storage: Supports parallel battery configurations within the manufacturer’s approved limits.
• Communication interfaces: CAN and RS485 are listed for compatible system monitoring and communication.
• Built-in protection functions: Published specifications list electrical protection features, including current and temperature protection.
• Standing metal enclosure: A floor-standing format for suitable indoor battery installations.

Typical Appliance Runtime Estimates (Single 10.24kWh Module)

A single IPL-51200X (10.24kWh) power wall module manages heavy home or business equipment:

• 2x 1.5HP Inverter Air Conditioners (1200W avg load): ~7 to 8 Hours
• 2x Refrigerator / Freezers (300W combined): ~28 to 30 Hours
• 55″ LED TV + Sound System + Decoder (150W total): ~60+ Hours
• Entire Office: 8x Laptops + Wi-Fi + Printers (400W total): ~20 to 22 Hours
• 8x Standing / Ceiling Fans (320W total): ~26 to 28 Hours
• 30x Low-Wattage LED Bulbs (210W total): ~40+ Hours
