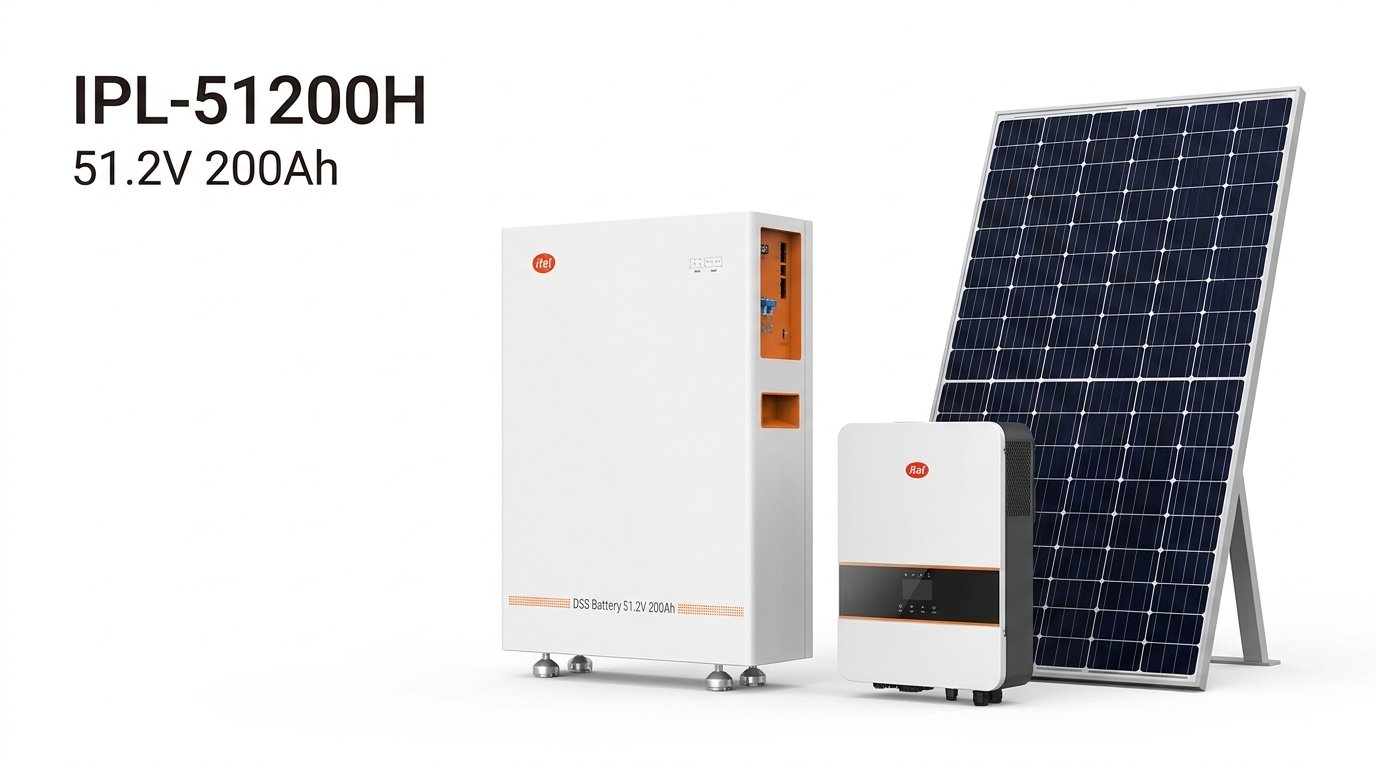

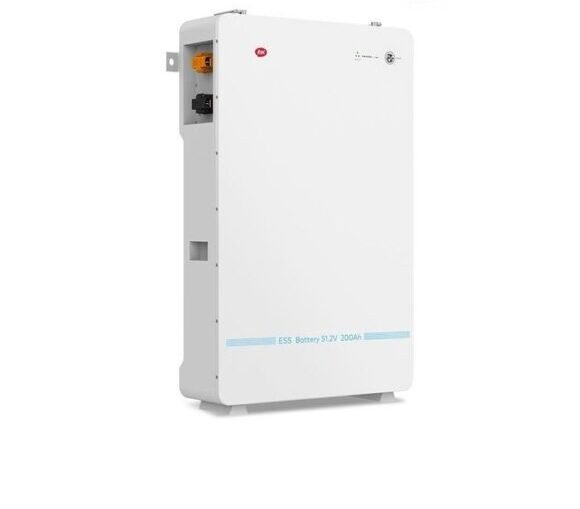

itel 51.2V 200Ah LiFePO4 Lithium Battery IPL-51200H

itel 51.2V 200Ah LiFePO4 Lithium Battery IPL-51200H

itel 51.2V 200Ah LiFePO4 Lithium Battery IPL-51200H built around 51.2V, 200Ah LiFePO₄ battery technology, this model provides substantial energy storage for residential solar installations, offices, commercial premises and other applications requiring dependable backup power.

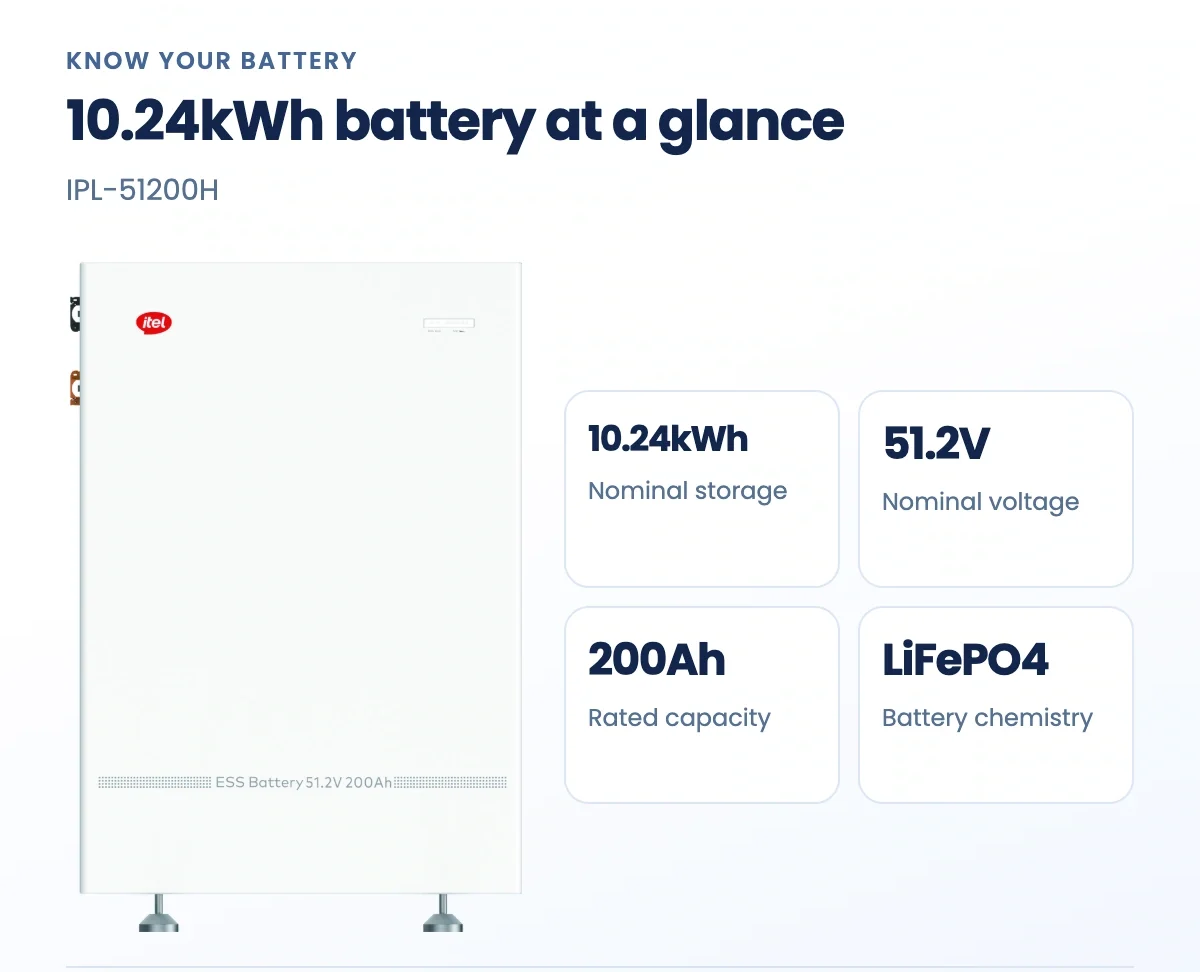

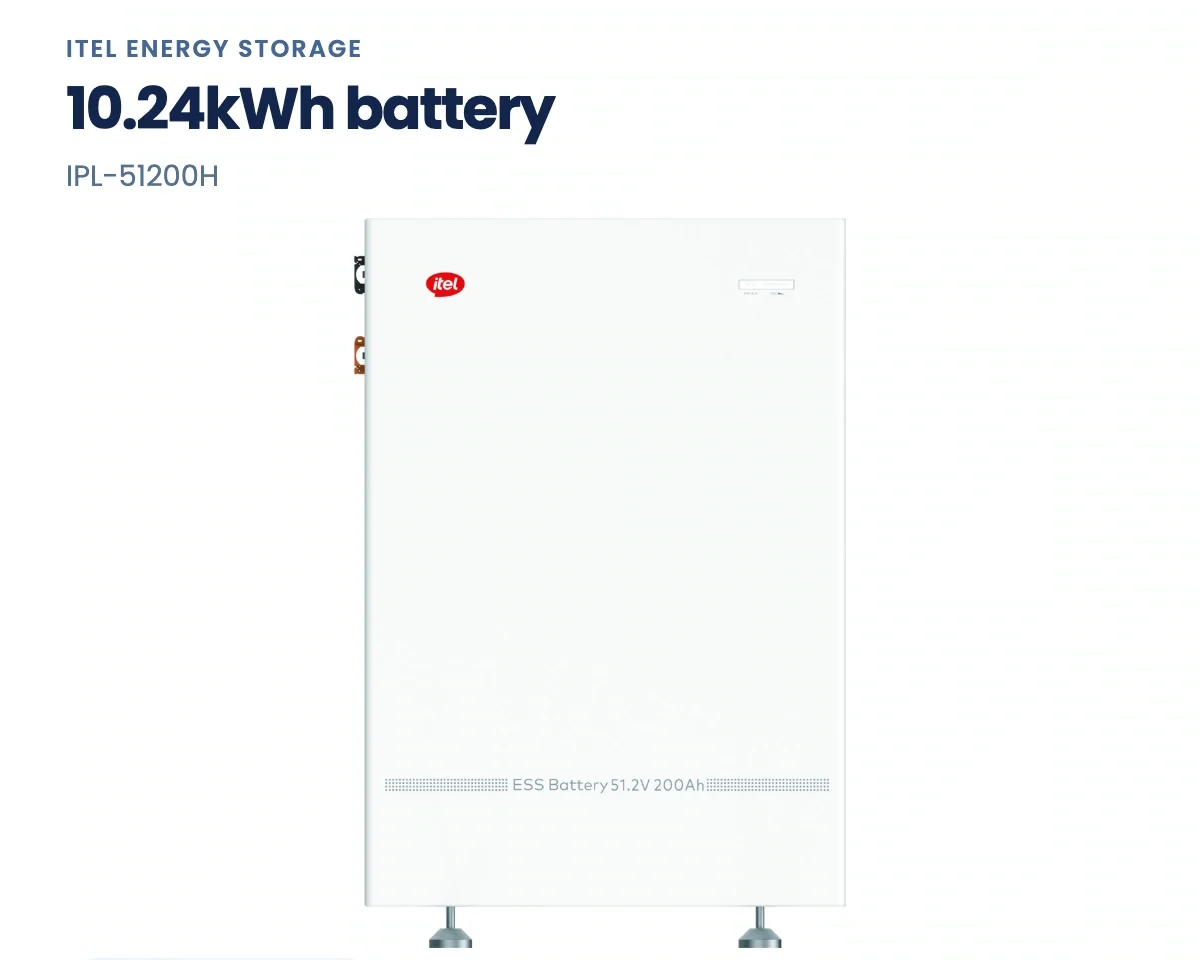

With a nominal energy capacity of 10.24kWh, the IPL-51200H can store electricity generated by a compatible solar system for use when sunlight is limited or the public power supply is unavailable. Its Lithium Iron Phosphate chemistry and published cycle-life rating of more than 6,000 cycles under specified laboratory conditions make it an option for buyers planning a long-term energy storage installation.

The battery includes a battery management system (BMS) for monitoring and protection, along with CAN and RS485 communication interfaces for compatible equipment. It also supports parallel expansion according to the manufacturer’s specifications, allowing approved installations to increase their total storage capacity as energy needs grow.

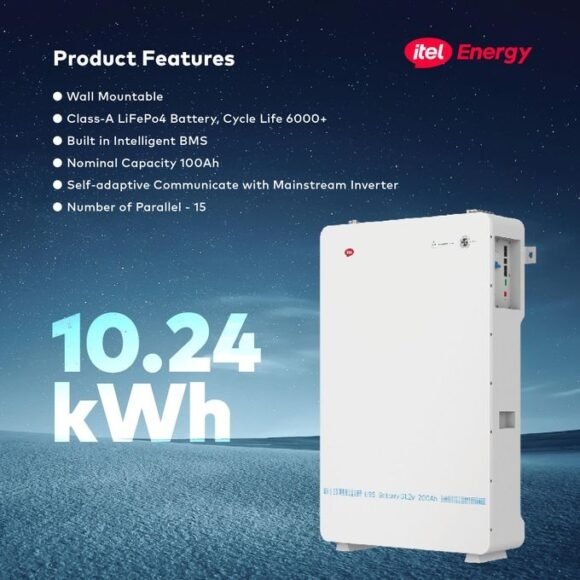

Key Features and Benefits

• 10.24kWh energy storage: Keeps a substantial amount of stored electricity available for appropriately sized backup systems.
• 51.2V, 200Ah configuration: Built for compatible 48V-class solar and energy storage installations.
• LiFePO₄ battery technology: Uses Lithium Iron Phosphate chemistry for rechargeable energy storage.
• 6,000+ cycle rating: Published cell cycle life exceeds 6,000 cycles under specified test conditions; actual performance varies with usage and environment.
• Intelligent battery management: BMS protection helps manage operating conditions and safeguard the battery.
• Parallel expansion: Supports larger storage banks when configured within the manufacturer’s approved limits.
• CAN and RS485 communication: Allows data exchange with compatible inverters and monitoring systems.
• Natural cooling: Uses passive cooling rather than a dedicated active cooling system.
• Metal enclosure: Provides a robust housing for a properly installed battery system.

Typical Appliance Runtime Estimates (Single 10.24kWh Module)

A single IPL-51200H (10.24kWh) module manages heavy home or commercial loads:

• 2x 1.5HP Inverter Air Conditioners (1200W avg load): ~7 to 8 Hours
• 2x Refrigerator / Freezers (300W combined): ~28 to 30 Hours
• 55″ LED TV + Sound System + Decoder (150W total): ~60+ Hours
• Entire Office: 8x Laptops + Wi-Fi + Printers (400W total): ~20 to 22 Hours
• 8x Standing / Ceiling Fans (320W total): ~26 to 28 Hours
• 30x Low-Wattage LED Bulbs (210W total): ~40+ Hours
