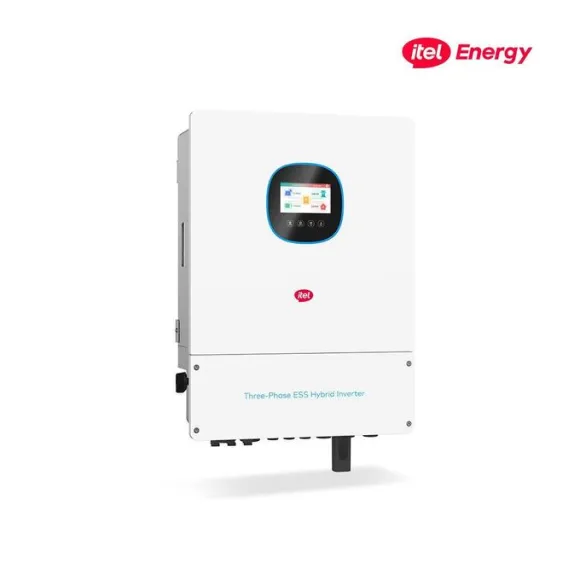

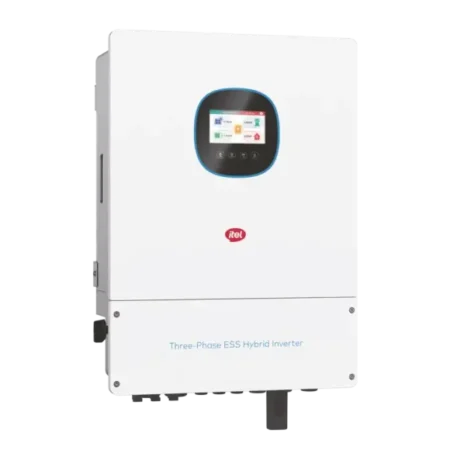

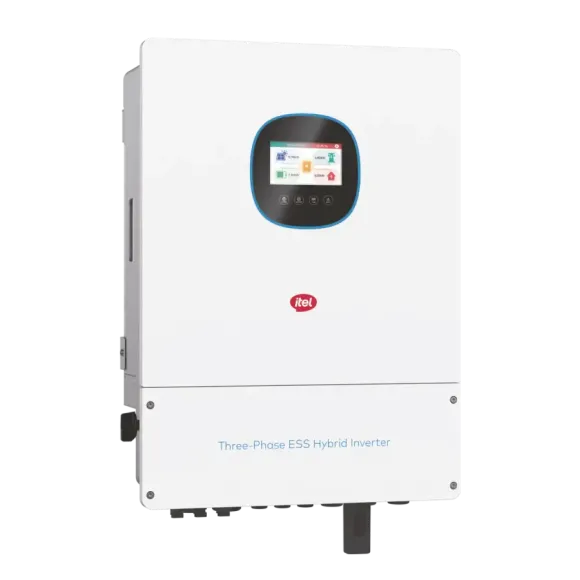

itel 12kW 48V 3-Phase Hybrid Solar Inverter IHY-12KL3

itel 12kW 48V 3-Phase Hybrid Solar Inverter IHY-12KL3

itel 12kW 48V 3-Phase Hybrid Solar Inverter IHY-12KL3 is designed for larger homes, offices, commercial buildings and other properties requiring three-phase power, this inverter combines solar energy conversion, battery charging and compatible AC power management.

With a rated output of 12,000W and a 48V battery system, the itel IHY-12KL3 supports solar installations designed to manage substantial electrical loads. It accepts up to 24kW of solar PV input and features two MPPT trackers, helping installers configure solar panel arrays within the inverter’s electrical limits.

Key Features and Benefits

• 12kW rated output: Provides up to 12,000W of rated AC output under specified operating conditions.
• Three-phase power: Designed for compatible 380V/400V three-phase electrical installations.
• 48V battery system: Supports compatible lead-acid and lithium-ion batteries, subject to manufacturer requirements.
• Up to 24kW solar PV input: Supports a high-capacity solar array within the inverter’s voltage and current limits.
• Dual MPPT trackers: Two solar tracking inputs for compatible panel-string configurations.
• IP66 protection: Dust-tight enclosure with protection against powerful water jets under specified test conditions.
• Dual-output functionality: Supports on-grid, backup-load and smart-load operating modes.
• Built-in Wi-Fi: Enables compatible monitoring when connected and configured with the supported system.
• High surge capability: Supports peak backup output of up to 24kVA for 15 seconds according to manufacturer documentation.
• Grid and generator support: Supports compatible AC sources according to the installation requirements.
• Parallel operation: Manufacturer documentation lists support for parallel configurations; verify the permitted setup and unit count before installation.

Appliance Capacity Guide (Typical 3-Phase Commercial Load)

The itel 12kW (12,000W) 3-Phase continuous capacity on a 48V battery setup easily handles heavy commercial machinery and multi-building facilities:

• 3-Phase Industrial Machines, CNC Motors, Elevators & Cold Storage Units
• 4x to 6x 1.5HP / 2HP Inverter Air Conditioners (Spread across 3 phases)
• 1x 3HP or 5HP 3-Phase Heavy-Duty Water Pump / Borehole Station
• Entire Multi-Story Office / Clinic: Server Racks, Computers, Medical Gear & Printers
• Multiple Double-Door Commercial Freezers & Walk-in Coolers
• Building-Wide 3-Phase LED Lighting System
