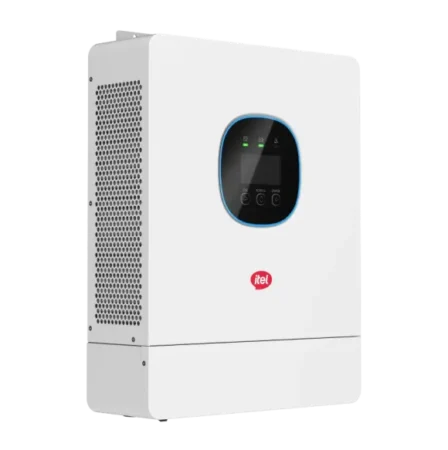

itel Pro 3kW 24V IP54 Hybrid Off-Grid Solar Inverter IPV-3K24UPRO

itel Pro 3kW 24V IP54 Hybrid Off-Grid Solar Inverter IPV-3K24UPRO

itel Pro 3kW 24V IP54 Hybrid Off-Grid Solar Inverter IPV-3K24UPRO power’s your home or businesses. It’s designed for customers seeking dependable backup electricity and a flexible solar power solution. Moreover, with 3000W AC output, 24V batteries, and up to 4,500W PV input, this inverter fits residential and small-business installs.

Additionally, the itel IPV-3K24UPRO offers pure sine wave AC output with an integrated MPPT solar charge controller. Its high-voltage solar input design supports a wider range of solar array configurations when installed within the manufacturer’s voltage and current limits.

As a result, the inverter is designed for everyday use, offering IP54-rated protection, intelligent fan cooling, and built-in electrical safety protections. It supports compatible lead-acid and lithium batteries, allowing customers to configure their backup system according to their energy requirements and battery specifications.

Key Features

• 3000W rated output: Supplies up to 3kW of rated AC power for compatible appliances within the inverter’s operating limits.
• 24V battery system: Designed for compatible 24V lead-acid and lithium battery configurations.
• Up to 4,500W solar PV input: Supports a substantial solar array, subject to the manufacturer’s input limits and correct system design.
• Advanced MPPT solar charging: Helps optimize energy harvested from connected solar panels.
• High-voltage solar input: Supports up to 500V DC maximum PV open-circuit voltage, with an MPPT operating range of 70–425V.
• Pure sine wave output: Provides sinusoidal AC power for compatible electronics and household appliances.
• Single-phase AC output: Supports the specified 220V/230V/240V output configurations.
• IP54-rated protection: Provides protection against dust ingress and water splashes under the rated test conditions.
• Intelligent fan cooling: Helps regulate internal operating temperature.
• Built-in safety protections: Includes protection against overload, short circuit and excessive operating temperature.

Why Choose the itel IPV-3K24UPRO Pro?

The itel IPV-3K24UPRO is designed for users who want a 3kW inverter with substantial solar input capacity. Its 4,500W maximum PV input makes it possible to connect a suitably configured solar array, while the integrated MPPT controller manages solar charging within its rated limits.

Given the need for backup power, it works for homes, shops, and offices with lighting, TVs, computers, and refrigeration. As a result, actual performance depends on total load, appliance starting current, available solar generation, battery capacity and installation quality.

For safe and reliable operation, have a qualified solar installer design the panel string configuration, battery bank, cabling and electrical protection according to the manufacturer’s manual.

Appliance Capacity Guide (Typical Load)

Additionally, the itel 3kW (3000W) continuous capacity on a 24V system easily handles heavy daily loads.

• 1x Inverter Air Conditioner (1HP or 1.5HP) (during solar peak hours)
• 1x Medium/Large Refrigerator or Chest Freezer
• 1x Automatic Water Pump (0.5HP–1HP)
• 2x Smart TVs + Sound Systems + Decoders
• 3–5x Laptops/Desktops, Printers & Wi-Fi Routers
• 4–6x Standing / Ceiling Fans
• Entire House LED Lighting System
