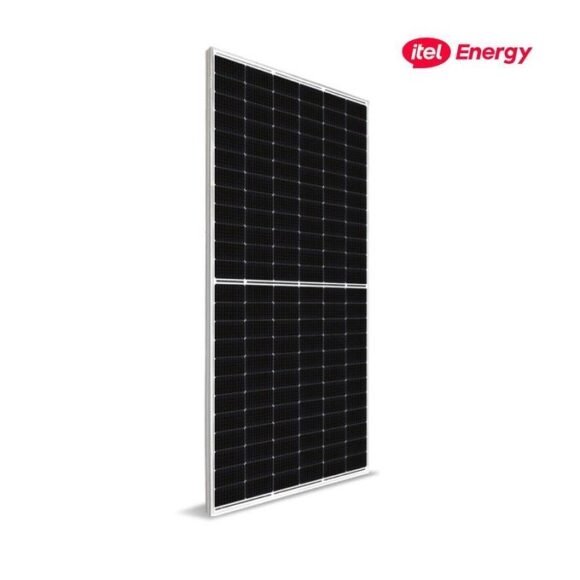

itel 620W Monocrystalline Solar Panel ISP-620W

itel 620W Monocrystalline Solar Panel ISP-620W

itel 620W Monocrystalline Solar Panel ISP-620W built for installations that require substantial power generation from each module. Using advanced N-TOPCon half-cut cell technology, this panel delivers a rated output of 620 watts and a published module efficiency of 22.95%.

Its bifacial construction allows the panel to capture sunlight from both its front and rear surfaces. When installed above a reflective surface with adequate rear-side exposure, it can generate additional electricity beyond the front-side rating. Actual gains depend on the mounting height, ground reflectivity, panel spacing and surrounding conditions.

The ISP-620W-G1 uses 132 half-cut N-type cells and a dual-glass construction, combining a tempered front surface with a glass rear layer. An anodised aluminium frame and an IP68-rated junction box contribute to its outdoor durability. The module is also specified for a maximum system voltage of 1,500V DC, subject to applicable installation standards.

Key Features and Benefits

• 620W rated output: Provides substantial rated power from each module.
• 95% module efficiency: Converts sunlight into electricity efficiently under standard test conditions.
• N-TOPCon cell technology: Uses advanced N-type monocrystalline photovoltaic cells.
• Bifacial energy generation: Captures reflected sunlight at the rear when installation conditions are favourable.
• 132 half-cut cells: Arranged in a 6 × 22 configuration.
• Positive power tolerance: Published output tolerance is 0 to +3W.
• Dual-glass construction: Uses tempered glass on the front and glass on the rear.
• IP68 junction box: Helps protect electrical connections against dust and water ingress.
• High-voltage system compatibility: Rated for up to 1,500V DC system voltage when used in an appropriately designed array.
• Weather-resistant construction: Published mechanical load ratings include 2,400Pa wind load and 5,400Pa snow load.

Estimated Daily Energy Output (Single 620W Module)

Under typical Nigerian solar irradiation (average 4.5 to 6.0 Peak Sun Hours/day):

• Average Daily Output: ~2.79kWh to 3.72kWh per day (per panel)
• 10-Panel Array (6.2kW PV System): ~27.9kWh to 37.2kWh total daily generation
• 20-Panel Array (12.4kW PV System): ~55.8kWh to 74.4kWh total daily generation
