itel 51.2V 314Ah Industrial Outdoor LiFePO4 Lithium Battery IPX-51314SPT

itel 51.2V 314Ah Industrial Outdoor LiFePO4 Lithium Battery IPX-51314SPT

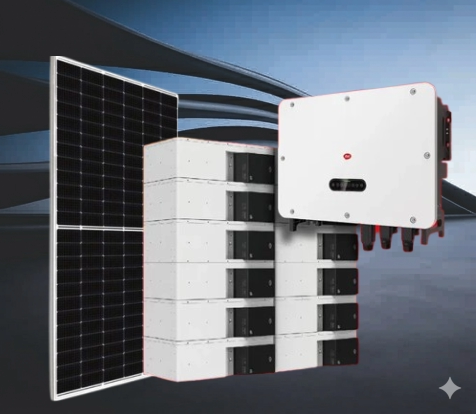

itel 51.2V 314Ah Industrial Outdoor LiFePO4 Lithium Battery IPX-51314SPT a modular battery solution developed for commercial and industrial energy storage. With a nominal capacity of 314Ah and a 51.2V nominal voltage, this battery module provides 16kWh of stored energy for suitably configured solar and backup power systems.

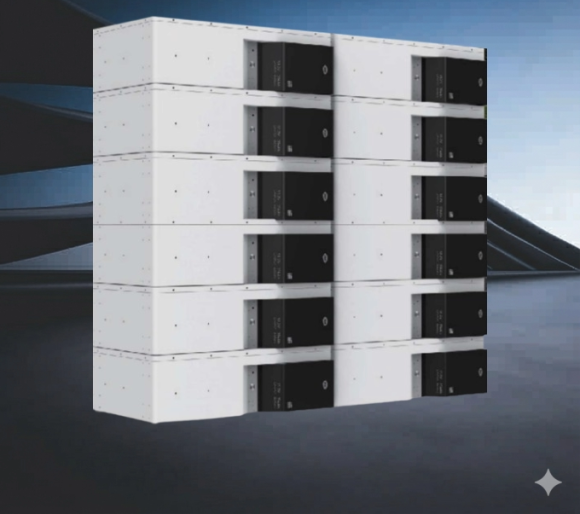

Unlike conventional household battery units, the IPX-51314SPT is built around a stackable architecture that allows multiple modules to be combined into larger energy storage banks. Supported configurations can connect up to 16 units in parallel and 12 in series, offering flexibility for projects with greater storage requirements. Series connections must follow the manufacturer’s approved configuration and inverter compatibility requirements.

Key Features and Benefits

• 16kWh nominal energy: Stores a substantial amount of energy in one battery module.
• 314Ah capacity: Provides the battery capacity needed for larger energy storage applications.
• LiFePO₄ cell chemistry: Offers a chemistry widely used in long-life stationary energy storage.
• 6,000+ rated cycles: Published cycle-life performance is based on specified testing conditions, not a guaranteed service life in every installation.
• Modular expansion: Supports approved series and parallel configurations for larger storage banks.
• Up to 200A continuous charge/discharge: Enables high-current energy transfer within the manufacturer’s limits.
• Intelligent BMS: Monitors battery operation and provides software-based protection.
• CAN and RS485 communication: Allows integration with compatible inverters and monitoring equipment.
• Built-in hardware protection: Includes circuit-breaker and fuse protection.
• Metal enclosure and natural cooling: Provides a cabinet-style battery design without relying on forced-air cooling.

Typical Appliance Runtime Estimates (Single 16.07kWh Module)

A single IPX-51314SPT (16.07kWh) module supports heavy residential, commercial, or office operations:

• 3x 1.5HP Inverter Air Conditioners (1800W avg load): ~7.5 to 8.5 Hours
• 3x Double-Door Refrigerators / Freezers (450W combined): ~30 to 32 Hours
• Large Commercial Displays / IT Workstations (300W total): ~45+ Hours
• Entire Office: 12x Laptops + Network Server Rack (600W total): ~22 to 24 Hours
• 10x Ceiling / Standing Fans (400W total): ~32 to 35 Hours
• Building-Wide LED Lighting System (280W total): ~45+ Hours
